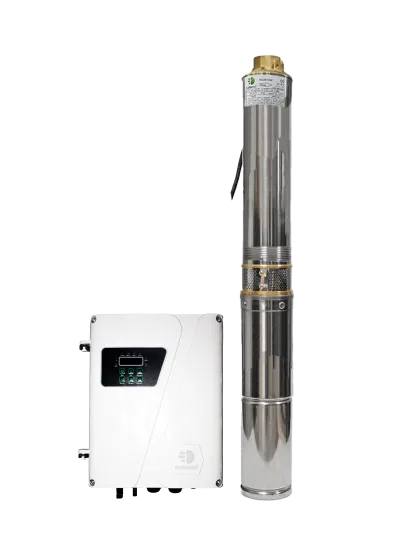

AC-DC Pump 4 Inch 220V 2200 Watt 14 Ton HMAX: 125 m Outlet: 2
Solinved DC Pumps
AC-DC Pump 4 Inch 220V 2200 Watt 14 Ton HMAX: 125 m Outlet: 2
680,00
$
18.744,25 ₺ + KDV
442,00 $ + KDV
%35
-
Stock Status : Available
-
Category : Solinved DC Pumps
| Power (W) | Voltage (V) | Flow Rate (m³/h) | Depth (h) | Outlet (Inch) | Dimensions (mm) | Weight (Kg) | Warranty (Year) |
| 2200 | 200 | 14 | 125 | 2 | 1260*260*145 | 17 | 2 |
| Recommended Number of Panels | 550*5 (SERIES) | ||||||
| Flow Rate (m³/h) | 13.91 | 12.15 | 10.00 | 8.03 | 6.05 | 4.06 | 2.01 | 0.00 |
| Head (m) | 0.61 | 14.79 | 36.62 | 56.81 | 72.01 | 87.31 | 110.16 | 125.15 |
| CONTROLLER MODEL | TP-200-A/D | |||||||
| CONTROLLER DATASHEET | |||||||||||||||||
| Controller Model | Compatible Pump | Max. Input Current (A) | Max. Open Circuit Voltage (V) | Optimum MPPT Voltage Range (V) | Operating Temperature (°C) | ||||||||||||
| TP-24 | 24V Pumps | 17 | <50 | 30-48 | -15 / 60 | ||||||||||||
| TP-48 | 48V Pumps | 17 | <100 | 60-90 | -15 / 60 | ||||||||||||
| TP-72 | 72V Pumps | 17 | <150 | 90-120 | -15 / 60 | ||||||||||||
| TP-96 | 96V Pumps | 17 | <200 | 110-150 | -15 / 60 | ||||||||||||
| TP-110-A/D | 110V A/D Pumps | 17 | <430 | 110-350 | -15 / 60 | ||||||||||||
| TP-200-A/D | 200V A/D Pumps | 17 | <430 | 200-350 | -15 / 60 | ||||||||||||
| TP-300-A/D | 300V A/D Pumps | 17 | <430 | 300-350 | -15 / 60 | ||||||||||||
| TP-520-AVD | 520V A/D Pumps | 17-56 | <780 | 520-650 | -15 / 60 | ||||||||||||
-
