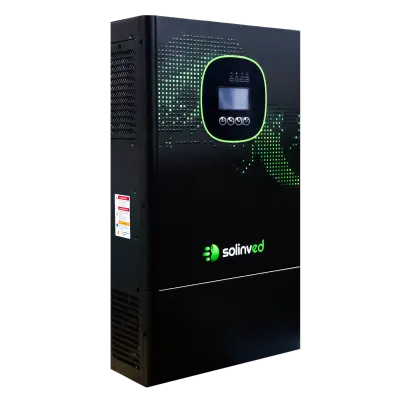

5.0 kW Gordion Series MPPT Off-Grid Inverter 48V
Mppt Smart Inverter
Ask question via Whatsapp
5.0 kW Gordion Series MPPT Off-Grid Inverter 48V
630,00
$
18.262,06 ₺ + KDV
409,50 $ + KDV
%35
-
Stock Status : Out of Stock
-
Category : Mppt Smart Inverter
| MODEL | SLV 1.2-12 PV800 | SLV 3.6-24 PV5000 | SLV 5.0-24 PV9000 | SLV 5.0-48 PV6000 | SLV 6.0-48 PV9000 | SLV 6.5-48 PV9000 |
|---|---|---|---|---|---|---|
| AC Input | ||||||
| Phase Type | Single Phase | |||||
| Rated Input Voltage (V AC) | 208/220/230/240, L+N+PE | |||||
| Input Voltage Range (V AC) | 90~280 (APP mode); 170~280 (UPS mode) | |||||
| Frequency (Hz) | 50/60 (Auto Adaptation) | |||||
| PV (DC) Input | ||||||
| Solar Charge Controller Type | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT |
| Max. PV Input Power (W) | 800 | 5000 | 6000 | 9000 | 9000 | 9000 |
| MPPT Operating Voltage Range (V DC) | 17~115 | 40~450 | 60~450 | 120~450 | 60~450 | 60~450 |
| Max. PV Charging Current (A) | 18 | 18 | 27 | 18 | 27 | 27 |
| PV Start-up Voltage (V DC) | 20 | 50 | 80 | 150 | 80 | 80 |
| Max. PV Open Circuit Voltage (V DC) | 115 | 500 | 500 | 500 | 500 | 520 |
| Max. PV Charging Current (A) | 100 | 160 | 160 | 80 | 120 | 120 |
| Max. AC Charging Current (A) | 100 | 160 | 160 | 80 | 120 | 120 |
| Max. Total Charging Current (PV+AC) (A) | 100 | 160 | 160 | 80 | 120 | 120 |
| Battery | ||||||
| Nominal Battery Voltage (V DC) | 12 | 24 | 24 | 48 | 48 | 48 |
| Battery Type | Lithium / Lead-Acid / AGM | |||||
| AC Output | ||||||
| Nominal Output Power (kW) | 1.2 | 3.6 | 5.0 | 5.0 | 6.0 | 6.5 |
| Surge Power (kVA) | 2.4 | 5.7 | 10.0 | 10.0 | 12.0 | 13.0 |
| Max. Efficiency (Battery Mode) | 90%@12V DC | 92%@24V DC | 93.5%@24V | 93%@48V | 94%@48V | 95%@48V |
| Output Voltage (V AC) | 208/220/230/240 | |||||
| Power Factor (PF) | 1 | |||||
| Output Frequency (Hz) | 50/60 ±0.1% | |||||
| Transfer Time (ms) | 10 | |||||
| Waveform | Pure Sine Wave | |||||
| General Data | ||||||
| Communication Interfaces | RS485 / RS232 / USB (Optional CAN, Dry Contact) | |||||
| Wi-Fi Module | Optional | Optional | Built-in | Optional | Built-in | Optional |
| Parallel Connection Units | / | / | 9 | / | 9 | / |
| User Interface (LCD) | LCD | |||||
| Monitoring Function | WiFi (Optional) | |||||
| Protection Level (IP Rating) | IP21 | |||||
| Operating Temperature Range | -10°C ~ 60°C | |||||
| Relative Humidity | 5% ~ 95% (Non-Condensing) | |||||
| Storage Temperature Range | -15°C ~ 60°C | |||||
| Maximum Operating Altitude | 4000 m (Derating applied above 1000 m) | |||||
-
